In demanding industrial applications, pump reliability is non-negotiable. Harsh environments—characterized by extreme temperatures, corrosive fluids, high pressures, and abrasive media—pose significant challenges to sealing components. Traditional packing materials often fail under such duress, leading to frequent maintenance, costly downtime, and safety hazards. At Ningbo Kaxite Sealing Materials Co., Ltd., we have engineered a solution that stands up to these challenges: Pure Graphite PTFE Packing. This advanced sealing material combines the unique properties of expanded pure graphite and PTFE (polytetrafluoroethylene) to deliver unparalleled performance. In this comprehensive guide, we will explore the science, specifications, and superior benefits of our premium packing, detailing exactly how it enhances pump efficiency and longevity in the toughest conditions.

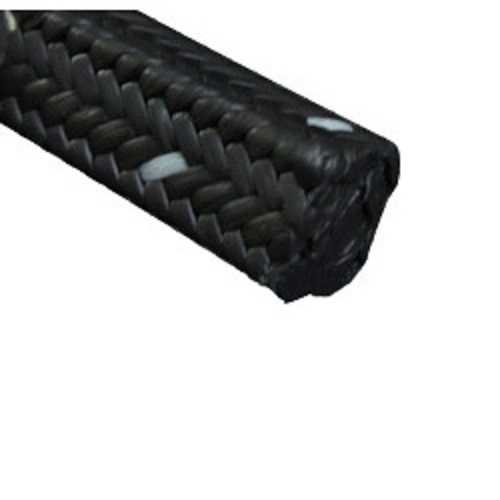

To understand the value proposition, one must first understand the composition. Pure Graphite PTFE Packing is a high-performance sealing material manufactured by combining expanded pure graphite with PTFE fibers or tapes. This hybrid construction is not a simple mixture; it is a synergistic engineering feat perfected at our factory. The core material, expanded pure graphite, offers exceptional thermal conductivity and self-lubricating properties. PTFE, widely known as Teflon, contributes outstanding chemical resistance, low friction, and impressive resilience. When woven or braided together, these materials create a packing that is far greater than the sum of its parts.
The manufacturing process at Ningbo Kaxite Sealing Materials Co., Ltd. is meticulous. We start with high-purity graphite, which is exfoliated to create a flexible, sheet-like structure. This is then integrated with premium PTFE using proprietary braiding techniques that ensure uniform density and consistent performance. The result is a pliable, rope-style packing that can be easily cut and installed into pump stuffing boxes, valves, and other rotary or reciprocating equipment. The unique structure of Pure Graphite PTFE Packing allows it to conform perfectly to the shaft or stem, creating a dynamic seal that adjusts to minor movements and wear.
Key characteristics that define this material include:
In essence, Pure Graphite PTFE Packing is designed for applications where failure is not an option. Its dual-material approach solves the classic sealing dilemma: achieving a tight seal without causing damaging shaft wear or requiring excessive maintenance. This is a cornerstone of our product philosophy at Ningbo Kaxite Sealing Materials Co., Ltd., where we focus on creating solutions that enhance overall system reliability.
The industrial sealing market offers numerous options, from traditional flax and aramid to more modern options like carbon fiber. However, when subjected to harsh environment benchmarks, Pure Graphite PTFE Packing consistently demonstrates superiority. Let's conduct a comparative analysis based on critical performance metrics.
First, consider thermal performance. Many packing materials have a limited operational range. For instance, standard elastomeric packings may harden and crack at low temperatures or degrade rapidly above 250°C. In contrast, the material from our factory excels. The graphite component provides stability in oxidizing atmospheres up to 450°C (in air) and even higher in inert environments, while PTFE handles cryogenic temperatures effortlessly. This breadth is unmatched by most alternatives.
Second, evaluate chemical resistance. While some materials resist specific chemicals, PTFE is virtually impervious to almost all industrial chemicals and solvents. This universal resistance means our packing can be specified for a vast array of services without the risk of chemical swell, shrinkage, or disintegration that plagues organic fibers or even some synthetic ones.
Third, assess long-term sealing integrity and shaft friendliness. A common drawback of hard packings is shaft or sleeve wear. The self-lubricating nature of graphite in our packing minimizes this wear dramatically. Furthermore, its conformability and memory allow it to maintain seal pressure even after thermal cycling or slight shaft misalignment, where other materials might relax and leak.
| Performance Metric | Pure Graphite PTFE Packing | Traditional Aramid Packing | Carbon Fiber Packing |
| Max Continuous Temperature in Air | Up to 450°C | ~300°C | Up to 350°C |
| Chemical Resistance | Excellent (Resists almost all chemicals) | Good (Poor against strong acids/alkalis) | Very Good (Poor in strong oxidizing agents) |
| Coefficient of Friction | Extremely Low (Self-lubricating) | Moderate to High | Low |
| Shaft Wear Tendency | Very Low | High (if not properly lubricated) | Low to Moderate |
| Flexibility & Conformability | Excellent | Good | Fair (Can be brittle) |
| Thermal Conductivity | High (Dissipates heat well) | Low (Heat buildup in box) | Moderate |
The table above clearly illustrates the competitive edge. Our commitment at Ningbo Kaxite Sealing Materials Co., Ltd. is to provide a product that doesn't just seal, but actively contributes to pump health. The high thermal conductivity of graphite, for example, is a game-changer. It effectively draws heat away from the shaft interface, preventing overheating of the packing set and the pump sleeve, which is a common cause of premature failure in harsh, high-duty cycles. This intrinsic property of our Pure Graphite PTFE Packing translates directly into extended mean time between maintenance (MTBM) and lower total cost of ownership.
Now, let's delve into the core question: the mechanism of performance enhancement. Harsh environments attack pumps on multiple fronts: thermally, chemically, and mechanically. Pure Graphite PTFE Packing provides a multi-layered defense that directly boosts pump performance metrics: efficiency, reliability, and lifespan.
In high-temperature applications (e.g., hot oil, boiler feed pumps), excessive heat can carbonize traditional packings, causing them to become brittle, lose seal pressure, and score shafts. The graphite in our packing is inherently stable at high temperatures. More importantly, its excellent thermal conductivity acts as a heat sink, channeling frictional heat away from the critical sealing interface and into the stuffing box walls where it can be dissipated. This prevents thermal runaway, protecting both the packing and the pump shaft. In cryogenic services, PTFE remains flexible, ensuring the seal does not contract excessively and leak.
Pumps handling acids, caustics, or abrasive slurries are under constant assault. The chemical inertness of PTFE forms the first barrier. It does not react with the process fluid, maintaining its structural integrity. For abrasive slurries, the self-lubricating film formed by the graphite reduces the coefficient of friction to such a low level that abrasive particles are less likely to embed into the packing and act as grinding agents against the shaft. This significantly reduces both packing and shaft wear.
Pressure fluctuations and system cycling can cause pump movement and shaft deflection. The braided structure of our product provides excellent radial strength and recovery. When pressure spikes, the packing compresses slightly but then springs back, maintaining seal contact. Its creep resistance ensures it does not continue to deform over time, which would lead to a gradual loss of gland load and eventual leakage. This stability is crucial in environments where pump load varies.
A major, often overlooked, performance enhancer is reduced friction. Stiff, high-friction packings can consume a significant portion of a pump's drive energy. The ultra-low friction characteristic of Pure Graphite PTFE Packing minimizes this parasitic loss. This translates to:
At Ningbo Kaxite Sealing Materials Co., Ltd., our testing shows that properly installed Pure Graphite PTFE Packing can reduce stuffing box friction by up to 60% compared to some conventional styles. This is a direct contribution to pump efficiency and sustainability goals. By protecting the shaft, handling extremes, and saving energy, this packing transitions from a simple maintenance part to a critical performance-enhancing component.
Professional specification and selection are based on hard data. Below, we provide a detailed breakdown of the technical parameters for our flagship Pure Graphite PTFE Packing. These specifications are the result of rigorous quality control and testing protocols at our factory, ensuring batch-to-batch consistency and reliability for your applications.
| Parameter | Specification / Value | Notes & Benefits |
| Material Composition | Expanded Pure Graphite & PTFE Fibers | Ratio optimized for balance of lubricity and chemical resistance. |
| Temperature Range | -200°C to +450°C (in air) | Exceptional range for both cryogenic and high-heat services. |
| pH Range | 0 - 14 | Fully resistant to all acids, alkalis, and solvents. |
| Specific Gravity | 1.6 - 1.8 g/cm³ | Indicates a robust, dense packing structure. |
| Thermal Conductivity | 10 - 15 W/m·K (axial) | High conductivity for effective heat dissipation. |
| Coefficient of Friction | 0.08 - 0.12 (dynamic, against steel) | Extremely low, ensuring minimal shaft wear and energy loss. |
| Pressure Rating | Up to 25 MPa (250 bar) | Suitable for high-pressure pump and valve applications. |
| Speed Rating | Up to 25 m/s surface speed | Excellent for high-speed rotary equipment. |
| Available Forms | Spools, Coils, Pre-formed Rings | Flexible to meet various installation needs. |
| Standard Sizes (Square Section) | 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm | Comprehensive size range for most stuffing boxes. |
| Color | Black (Graphite dominant) | Easily identifiable. |
| Compliance | FDA, USP Class VI, EU 10/2011, TA-Luft | Certified for use in food, pharmaceutical, and emission control applications. |
Interpreting these specs is key to application success. The pH range of 0-14 is particularly significant, as it means our packing can handle concentrated sulfuric acid and saturated sodium hydroxide with equal ease. The pressure and speed ratings demonstrate its robustness in demanding dynamic service. Furthermore, the regulatory compliances like FDA open doors for use in sensitive industries. Our production process ensures that every strand of Pure Graphite PTFE Packing meets these published specifications, giving engineers and maintenance professionals the confidence to specify it for critical services. We back these specifications with full technical support from our team to ensure optimal performance in your specific operating context.
Even the best sealing material requires correct selection and installation to perform as designed. Here is a step-by-step guide based on our decades of experience at Ningbo Kaxite Sealing Materials Co., Ltd..
Proper installation is critical. Incorrect installation is a leading cause of premature packing failure.
Following these procedures with our Pure Graphite PTFE Packing will ensure you achieve the maximum service life and performance that our product is engineered to deliver. Our factory provides detailed installation datasheets with every order to support your maintenance teams.
In harsh operating environments, the choice of sealing material is a decisive factor for pump reliability, efficiency, and total operational cost. Pure Graphite PTFE Packing represents a technological leap, combining the best attributes of two advanced materials to create a sealing solution that not only endures but actively enhances pump performance. Its ability to withstand extreme temperatures, resist all chemicals, reduce friction and wear, and maintain a stable seal under pressure makes it an indispensable asset for industries ranging chemical processing and power generation to pharmaceuticals and food & beverage.
At Ningbo Kaxite Sealing Materials Co., Ltd., we are proud to manufacture this superior product with consistent quality and precise specifications. Our commitment extends beyond supply; we are your partners in sealing technology, ready to provide the technical support needed to optimize your applications.
Stop compromising with inadequate packing materials that lead to downtime and high costs. Upgrade to the proven reliability of our Pure Graphite PTFE Packing. Contact our engineering team today for a free technical consultation, sample request, or detailed quotation. Let us help you specify the right sealing solution for your most challenging pump environments.
The packing handles abrasive slurries exceptionally well due to its low-friction, self-lubricating surface. The graphite forms a slippery film on the shaft, preventing abrasive particles from embedding into the packing material itself. This minimizes the grinding effect on the pump shaft or sleeve, significantly reducing wear on both the packing and the pump components compared to traditional fibrous packings which can trap abrasives.
Our Pure Graphite PTFE Packing is rated for dynamic sealing applications up to 25 MPa (approximately 250 bar or 3600 psi). This high-pressure capability is due to its dense, braided structure and excellent creep resistance. For static or flange gasketing applications, even higher pressures can be contained. Always consult our technical data for the specific grade and confirm your application's pressure and temperature profile.
Yes, it is an excellent choice for high-speed applications. The product has a rated surface speed of up to 25 meters per second. Its low friction coefficient generates minimal heat, and its high thermal conductivity effectively dissipates any frictional heat that is generated. This combination prevents overheating and burning, which are common failure modes for packings in high-speed service.
Absolutely. We produce specific grades of our Pure Graphite PTFE Packing that are compliant with FDA regulations, USP Class VI, and EU regulation 10/2011 for food contact materials. These grades use certified raw materials and are manufactured under controlled conditions to ensure they are non-toxic, non-contaminating, and safe for use in processing food, pharmaceuticals, and potable water.
It requires significantly less adjustment and offers a much longer service life. Traditional packings may need gland re-tightening weekly or even daily in harsh services. Our packing, due to its thermal stability and low wear rate, may only need minor adjustment after the initial run-in period and then run for months or even years without attention. Replacement intervals are typically 3-5 times longer than standard braided packings, drastically reducing maintenance labor and downtime.
