In industrial sealing applications, extending equipment service life is directly linked to selecting the right packing material and applying it correctly. Graphite PTFE Filament Packing has become a preferred solution in chemical processing, power generation, water treatment, and petrochemical industries due to its balance of chemical resistance, low friction, and thermal stability. However, long term performance is not achieved by material selection alone. Installation methods, operating conditions, and product specifications all play decisive roles.
At Ningbo Kaxite Sealing Materials Co., Ltd, we have accumulated decades of practical experience in sealing technology. Our understanding of graphite based PTFE packings is grounded in continuous testing, real application feedback, and strict production control at our factory. In this article, we explain how Graphite PTFE Filament Packing can be used to extend service life, reduce downtime, and improve overall operational reliability.
Graphite PTFE Filament Packing is widely recognized for its ability to deliver stable sealing performance over extended operating cycles. Its long service life is not the result of a single feature, but rather the combined effect of material composition, structural design, and functional behavior under real industrial conditions. When properly selected and applied, this packing material helps reduce maintenance frequency, minimize leakage risks, and protect expensive equipment components.

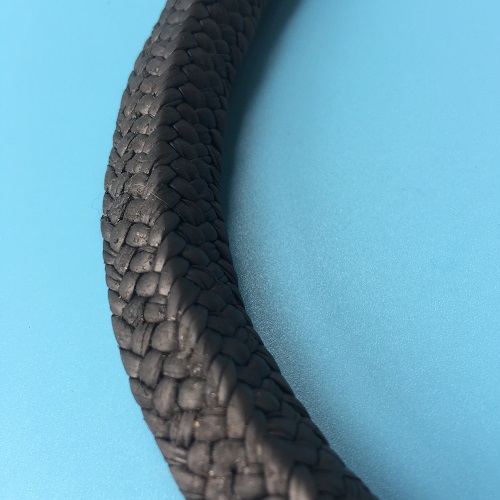

The core reason behind the longevity of Graphite PTFE Filament Packing lies in its composite structure. It is manufactured by braiding high strength PTFE filaments that are uniformly impregnated with fine graphite particles. PTFE provides outstanding chemical inertness and flexibility, while graphite contributes thermal conductivity and solid lubrication. This combination allows the packing to adapt to shaft or stem movement without cracking or hardening. At the same time, graphite forms a microscopic lubricating film at the contact surface, significantly reducing friction and heat generation. Lower operating temperature directly translates into slower material aging and longer sealing life.
Friction is one of the primary causes of premature packing failure. Excessive friction leads to rapid wear, shaft scoring, and thermal degradation. Graphite PTFE Filament Packing addresses this challenge through its naturally low friction coefficient.
By maintaining smooth sliding contact, the packing preserves both its own structure and the integrity of the equipment, which is essential for long term reliability.
Thermal stability is another decisive factor for service life. Graphite improves heat dissipation by transferring frictional heat away from the sealing interface. This prevents localized overheating, which often causes PTFE creep or deformation.
| Performance Factor | Contribution to Service Life |
| Graphite Impregnation | Enhances heat transfer and reduces thermal stress |
| PTFE Filament Flexibility | Prevents cracking under temperature fluctuation |
| Stable Braid Structure | Maintains shape under continuous compression |
| Non Hardening Behavior | Avoids brittleness during long term use |
This stable thermal behavior allows the packing to operate reliably across a wide temperature range without frequent adjustment or replacement.
In many industries, sealing materials are exposed to aggressive media. Graphite PTFE Filament Packing demonstrates excellent resistance to acids, alkalis, solvents, and most process fluids. Because PTFE is chemically inert, it does not swell, dissolve, or react with media that would quickly degrade conventional packings.
This resistance ensures that chemical exposure does not become a limiting factor in service life.
Finally, structural stability ensures that the packing maintains uniform contact pressure throughout its lifespan. The braided construction of Graphite PTFE Filament Packing resists extrusion and deformation, even under fluctuating pressure conditions. This stability allows the packing to compensate gradually for wear without sudden loss of sealing effectiveness.
When low friction, thermal stability, chemical resistance, and structural integrity work together, the result is a sealing solution specifically suited for long service life in demanding industrial applications.
Material parameters are the technical foundation that determines whether Graphite PTFE Filament Packing can truly deliver long service life in real operating environments. While the material itself offers excellent inherent properties, its performance is only optimized when those properties are aligned with actual working conditions. Ignoring or misunderstanding material parameters often leads to premature leakage, accelerated wear, and unnecessary maintenance costs.
Graphite PTFE Filament Packing is engineered with defined physical and chemical limits. These parameters are not theoretical values but practical operating guidelines established through laboratory testing and long term field experience.
| Parameter | Typical Range | Practical Impact on Service Life |
| Temperature | -200 C to +280 C | Controls material stability and prevents thermal degradation |
| Pressure | Up to 25 MPa | Ensures packing maintains sealing integrity without extrusion |
| Shaft Speed | Up to 20 m/s | Limits frictional heat generation at the sealing interface |
| pH Compatibility | 0 to 14 | Prevents chemical attack and material swelling |
| Density | Application dependent | Affects compression behavior and wear resistance |
Each of these parameters directly influences how the packing behaves under load. Operating outside recommended limits may not cause immediate failure, but it significantly shortens service life.
Temperature is one of the most sensitive parameters for Graphite PTFE Filament Packing. While PTFE offers excellent heat resistance, excessive or fluctuating temperatures accelerate creep and relaxation. Graphite improves heat dissipation, but it cannot compensate for prolonged operation beyond design limits.
When temperature limits are respected, the packing maintains elasticity and contact pressure for much longer periods.
Pressure and density are closely related parameters that define how Graphite PTFE Filament Packing responds to compression. Higher system pressure requires packing with sufficient density and structural integrity to resist extrusion while maintaining flexibility.
If density is too low for the pressure applied, the packing may deform excessively, resulting in leakage. If density is too high, it may increase friction and accelerate shaft wear. Correct matching ensures balanced performance.
Shaft speed determines the amount of frictional heat generated at the sealing interface. Graphite PTFE Filament Packing performs well at moderate to high speeds due to its low friction coefficient, but exceeding recommended limits increases surface temperature dramatically.
Excessive speed causes:
Maintaining shaft speed within specified limits ensures that graphite continues to function as an effective solid lubricant.
Chemical exposure is often underestimated when selecting packing materials. Graphite PTFE Filament Packing offers broad chemical resistance, but parameter awareness is still essential. While PTFE resists most chemicals, certain oxidizing environments or high temperature chemical reactions can affect performance.
By aligning chemical parameters with application requirements, users ensure that chemical attack does not become a limiting factor in service life.
Even the highest quality Graphite PTFE Filament Packing cannot perform as intended without correct installation. Installation errors are among the most common causes of premature failure observed in the field.
At Ningbo Kaxite Sealing Materials Co., Ltd, we advise avoiding excessive initial compression. Graphite PTFE Filament Packing requires a controlled break in period to allow proper seating. Over tightening during installation increases friction and shortens service life. Our factory testing confirms that proper joint staggering reduces leakage paths and distributes pressure evenly. This practice significantly improves sealing stability during long term operation.
Operating conditions are the real world environment in which Graphite PTFE Filament Packing must perform every day. Even when high quality materials are selected and installed correctly, unfavorable or unstable operating conditions can significantly shorten service life. Understanding how these conditions interact with the packing allows operators to control wear mechanisms, maintain sealing efficiency, and achieve predictable long term performance.
Temperature directly affects the physical behavior of Graphite PTFE Filament Packing. While the material is designed to withstand a wide temperature range, frequent fluctuations create thermal cycling stress. This stress causes gradual relaxation of packing rings and reduces contact pressure over time.
When operating temperatures remain within a narrow and controlled range, the packing retains elasticity and sealing force, which extends service life considerably.
Pressure stability is another critical factor. Sudden pressure spikes place excessive mechanical stress on the packing structure, while prolonged overpressure increases the risk of extrusion and deformation. Graphite PTFE Filament Packing performs best under steady pressure conditions that match its design parameters.
Inconsistent pressure can lead to:
Maintaining stable operating pressure helps preserve the braided structure and ensures uniform load distribution throughout the packing set.
Shaft speed and alignment directly determine the frictional forces acting on Graphite PTFE Filament Packing. Even with low friction characteristics, excessive speed or misalignment causes uneven contact and localized heat buildup.
Misaligned shafts concentrate stress on specific areas of the packing, leading to premature failure. Correct alignment and surface finish significantly reduce wear rates.
The cleanliness of the sealed media often determines how long Graphite PTFE Filament Packing can perform effectively. Abrasive particles suspended in fluids act like grinding agents, eroding the packing surface and reducing sealing effectiveness.
| Media Condition | Impact on Service Life |
| Clean fluids | Minimal wear and extended sealing cycles |
| Light particulates | Moderate wear with controlled maintenance |
| Abrasive solids | Accelerated erosion and reduced lifespan |
| Crystallizing media | Increased risk of surface damage |
Filtration and media control significantly improve service life by minimizing abrasive contact at the sealing interface.
Although Graphite PTFE Filament Packing is self lubricating, external cooling and controlled lubrication can further enhance service life in demanding applications. Cooling reduces thermal stress, while proper lubrication supports the graphite film during startup and continuous operation.
Extending service life using Graphite PTFE Filament Packing requires a comprehensive approach that includes material selection, parameter matching, correct installation, and controlled operating conditions. When these elements are aligned, users can achieve reliable sealing performance with reduced maintenance and downtime.
At Kaxite Sealing, our commitment to quality manufacturing and technical support ensures that our products deliver consistent long term value. Our factory processes, combined with field proven experience, allow our solutions to meet demanding industrial requirements. If you are seeking a sealing solution that improves reliability and lowers total cost of ownership, our Graphite PTFE Filament Packing is designed to meet your expectations. Contact our team today to discuss your application needs and receive tailored technical support.
Q1: How to Extend Service Life Using Graphite PTFE Filament Packing?
Service life can be extended by matching material parameters to operating conditions, installing the packing correctly, avoiding over tightening, and maintaining stable temperature and pressure during operation.
Q2: Why does graphite impregnation improve durability?
Graphite reduces friction and improves heat dissipation, which minimizes thermal degradation and shaft wear, leading to longer sealing performance.
Q3: Can Graphite PTFE Filament Packing handle aggressive chemicals?
Yes, it offers excellent chemical resistance across a wide pH range, making it suitable for acids, alkalis, and solvents when parameters are respected.
Q4: How often should gland adjustments be performed?
Periodic minor adjustments are recommended during operation to maintain optimal sealing pressure and prevent excessive wear.
Q5: Is this packing suitable for high speed applications?
It can be used in moderate to high speed applications within recommended limits, provided heat generation is controlled and proper lubrication conditions are maintained.
