In the demanding world of chemical processing, pumps are the arteries of the operation, and their sealing systems are the critical valves that prevent disaster. For decades, engineers have debated the optimal sealing material, and one solution consistently rises to the top: flexible graphite packing. Its widespread adoption in chemical pump applications is not accidental; it is the result of extreme thermal stability, near-universal chemical resistance, and a unique ability to maintain a dynamic seal even as equipment ages. At Ningbo Kaxite Sealing Materials Co., Ltd., we have spent two decades refining this very material to meet the rigorous demands of global chemical plants.
Flexible graphite packing solves the fundamental paradox of pump sealing: it must be soft enough to conform to shaft irregularities yet resilient enough to withstand high pressures and corrosive fluids. Unlike traditional asbestos or PTFE blends, flexible graphite offers a self-lubricating, non-aging seal that actually improves as the graphite platelets expand and compact under compression. This introduction explains exactly why our flexible graphite packing has become the standard for centrifugal pumps, positive displacement pumps, and valve stems in the harshest chemical environments, from sulfuric acid transfer to high-temperature thermal fluids.
The term "aggressive chemicals" covers a vast spectrum: strong acids like hydrochloric, oxidizing media, caustic soda, and volatile organic solvents. Flexible graphite, derived from high-purity expanded graphite, exhibits a unique inertness. It does not react with most chemicals because the graphite crystal structure is stable and contains no resins or binders that can leach out or degrade. Our factory produces flexible graphite packing that operates effectively in a pH range of 0 to 14, with the notable exception of strong oxidizing agents like fuming nitric acid at high concentrations. This chemical compatibility means one single packing material can often serve an entire chemical facility, simplifying inventory.
Furthermore, the inherent lubricity of graphite is a game-changer for pumps. When the pump shaft rotates, the graphite particles transfer a microscopic film to the shaft surface, creating a dynamic barrier. This reduces friction, prevents scoring of expensive pump sleeves, and ensures that the packing does not "glaze" or harden over time. In our decades of experience, we have observed that pumps packed with our flexible graphite material require significantly less gland adjustment compared to other fiber-based packings. The material also dissipates heat rapidly — a critical factor in pumps handling volatile chemicals where heat can lead to vaporization and catastrophic seal failure.
Our factory, Ningbo Kaxite Sealing Materials Co., Ltd., enhances these natural properties by introducing fine zinc or nickel wire reinforcement in certain grades, but the core remains pure, flexible graphite. This ensures that even if the reinforcing wire is corroded in an incompatible environment, the sealing function remains intact due to the graphite matrix. It is this fail-safe characteristic that makes our flexible graphite packing the first choice for safety-conscious chemical engineers.
Selecting flexible graphite packing is not a one-size-fits-all decision. The efficacy of the seal depends on precise physical and chemical parameters. At our facility, we engineer these parameters to match specific pump conditions. The density, for instance, determines the porosity of the packing. For chemical pumps handling light hydrocarbons or low-viscosity fluids like toluene, we recommend a higher density packing (typically 1.4 - 1.6 g/cm³) to create a tortuous path that prevents leakage. For thicker slurries, a slightly lower density allows the packing to act as a wiper, clearing solids from the shaft.
Another critical parameter is the weight loss on ignition, which indicates purity and thermal stability. High-quality flexible graphite should have less than 1% ash content. Impurities can catalyze corrosion or cause the packing to become brittle at high temperatures. Below is a detailed technical table showing the standard parameters of our premium flexible graphite packing range, designed specifically for chemical pump applications.
| Parameter | Value / Range | Influence on Chemical Pump Sealing |
| Temperature Range (Static) | -240°C to +650°C (inert); -240°C to +550°C (oxidizing) | Ensures seal integrity during pump start-up, operation, and steam-out cleaning cycles. |
| Pressure (Rotary Pump) | Up to 30 bar (depending on shaft speed and lubrication) | Withstands discharge pressures of multi-stage chemical pumps without extrusion. |
| pH Range | 0 - 14 (except strong oxidizers) | Universal compatibility; one packing spool can be used for acid and caustic services. |
| Density (g/cm³) | 1.3 - 1.8 (customizable) | Higher density reduces permeability for VOCs; lower density improves conformability. |
| Chloride Content (ppm) | < 50 ppm | Ultra-low chlorides prevent stress corrosion cracking of stainless steel shafts (316/ duplex). |
| Leakage Rate (typical) | AVDI 2140 standard (meets TA-Luft) | Meets fugitive emission regulations required by modern chemical plant permits. |
By matching these parameters to your pump's operating envelope, you achieve the "sweet spot" of minimal leakage and maximum service life. Our engineering team constantly refines these parameters based on feedback from chemical plants worldwide, ensuring that our flexible graphite packing evolves with the industry's challenges.

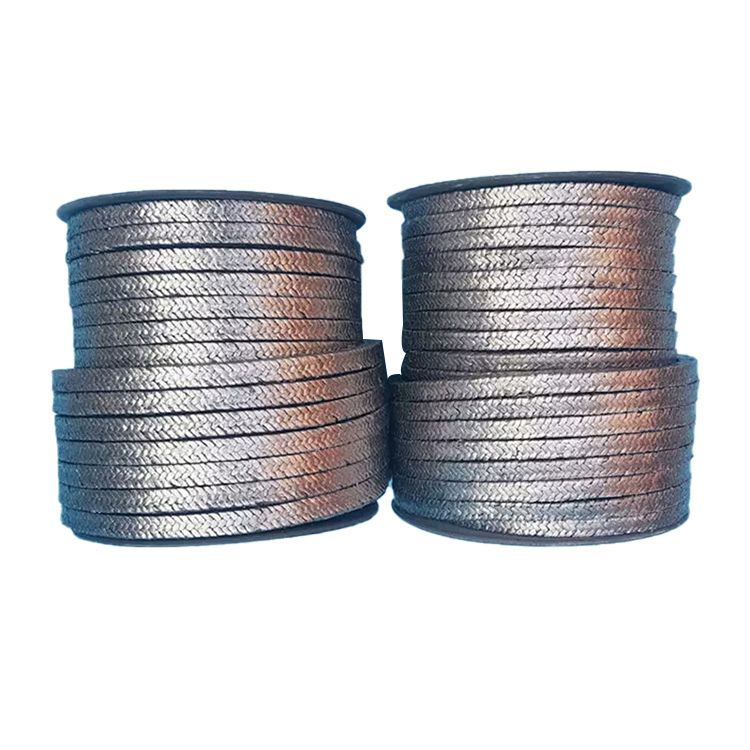

Consistency is the holy grail of pump packing. A chemical plant cannot afford to have one batch of packing perform excellently and the next fail within a week. At Kaxite, our manufacturing process is built on the principle of "zero deviation." It begins with the selection of high-purity natural graphite, which is intercalated, expanded, and then formed into continuous foil without any binders. This foil is then meticulously slitted and braided using what we call the "multi-pass" technique. Unlike standard braiders that simply weave, our process in our factory includes a proprietary densification step that ensures each strand of flexible graphite packing has the same cross-sectional density.
Furthermore, we understand that chemical pumps often operate in "dirty" conditions where crystallization or polymerization can occur. Therefore, our factory offers treated variants where the flexible graphite packing is impregnated with a corrosion inhibitor or a high-temperature lubricant. This impregnation is done under vacuum, ensuring that the treatment penetrates deep into the core of the packing, not just the surface. When you receive a spool from us, you are getting a product that has been traceable from the mine to the finished box, with quality checkpoints at every stage. This obsession with process control is why our customers in the pharmaceutical and petrochemical sectors trust our flexible graphite packing for their most critical pumps.
Our factory also excels in custom sizing. Chemical pumps often come from various global manufacturers with non-standard stuffing box dimensions. We maintain tooling for hundreds of cross-section sizes, from 3mm to 50mm. This flexibility means that our clients do not have to compromise on packing fit, which is a leading cause of premature failure. By choosing our factory as your partner, you gain access to a product that is engineered for the specific nuances of your chemical pump fleet, ensuring maximum uptime and safety.
In summary, flexible graphite packing has earned its widespread use in chemical pump applications through a combination of thermal resilience, chemical inertness, and mechanical adaptability. It effectively addresses the primary failure modes of pump seals: thermal degradation, chemical attack, and shaft wear. Throughout this article, we have demonstrated that the material's intrinsic properties, when coupled with precise manufacturing parameters, create a sealing solution that is both reliable and economical. At Kaxite, we do not simply produce packing; we engineer sealing systems that protect your personnel, your equipment, and the environment.
If you are currently facing challenges with pump leakage, frequent repacking, or if you are simply looking to standardize your sealing materials across multiple plants, we invite you to consult with our team. We offer free technical samples for qualifying chemical companies and can provide detailed parameter sheets tailored to your specific pump models. Contact our factory today to discuss how our flexible graphite packing can optimize your chemical pump operations and reduce your total cost of ownership. Let us put our 20 years of experience to work for you.
