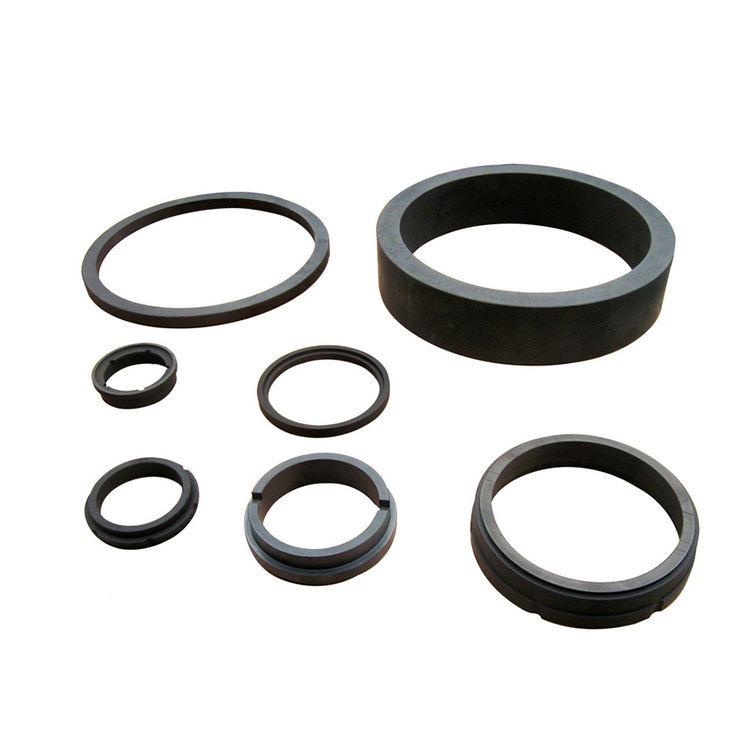

How to Select the Right Size for Graphite Die-formed Rings in Custom Applications?

Selecting the correct size for graphite die-formed rings is not merely a matter of matching a number on a datasheet; it is a critical engineering decision that directly impacts sealing efficiency, operational safety, and component longevity in high-performance environments. For over two decades, we at Ningbo Kaxite Sealing Materials Co., Ltd. have observed that even minor deviations in ring dimensions can lead to catastrophic failures such as leakage, extrusion, or premature wear, especially in applications involving extreme temperatures, high pressures, or aggressive media. Understanding the interplay between the ring’s geometry and the specific hardware constraints is the foundation of a reliable sealing system.

In custom applications, the stakes are significantly higher because standard off-the-shelf solutions rarely address unique groove designs, thermal expansion behaviors, or dynamic operational cycles. Our factory specializes in engineering precise graphite die-formed rings that meet exacting specifications. This guide consolidates decades of hands-on expertise into a structured methodology, ensuring that you can confidently determine the optimal dimensions for your unique requirements. From analyzing cross-sectional ratios to accounting for material compression set, we will navigate the technical nuances that transform a simple ring into a robust sealing solution.

---

Table of Contents

---

1. What Are the Critical Dimensional Parameters for Graphite Die-formed Rings?

When sizing graphite die-formed rings for custom applications, precision begins with understanding five core dimensional parameters that define the ring’s physical interface with the hardware. Each parameter must be evaluated not in isolation but as part of a coordinated system. At Ningbo Kaxite Sealing Materials Co., Ltd., our engineering team uses these parameters as the baseline for every custom solution.

• Inner Diameter (ID): The ID determines how the ring fits around the shaft or piston rod. An undersized ID causes excessive stretching, risking fracture or stress relaxation, while an oversized ID leads to radial play and leakage pathways. In static applications, we recommend a snug fit with a clearance of 0.05–0.15 mm depending on the shaft finish. For dynamic seals, the ID must accommodate slight shaft deflection without losing contact.

• Outer Diameter (OD): The OD interfaces with the housing bore. A critical factor is the OD’s relationship with the groove diameter. In our factory, we typically machine the OD to be 0.10–0.30 mm larger than the bore diameter for radial interference, ensuring a tight static seal. However, excessive interference can cause installation damage or ring buckling.

• Cross-Sectional Thickness (W): Defined as (OD – ID)/2, this dimension governs the ring’s ability to fill the groove under compression. For standard rectangular cross-sections, the thickness directly influences sealing force distribution. Our experience shows that a thickness-to-groove-depth ratio between 1.10:1 and 1.25:1 yields optimal sealing performance without over-stressing the material.

• Radial Wall Thickness Uniformity: This parameter is often overlooked but critical for concentricity. Non-uniform wall thickness creates uneven compression, leading to localized stress points. Our factory employs CNC-controlled die-forming to ensure wall thickness variation stays within ±0.05 mm for rings up to 300 mm in diameter.

• Corner Radii and Edge Geometry: The transition between the ring’s faces and its sides must be carefully controlled. Sharp edges can cut into mating surfaces or inhibit proper seating, while overly generous radii reduce effective sealing area. We maintain specific radii (typically R0.2 to R0.5 mm) based on the application’s pressure class.

Beyond these basic dimensions, we also consider the ring’s aspect ratio—the relationship between cross-sectional width and the ring’s overall diameter. High-aspect-ratio rings (thin cross-sections on large diameters) are prone to collapse under high pressure unless reinforced with anti-extrusion devices. Conversely, low-aspect-ratio rings may require careful attention to material flow during forming. Our team uses advanced simulation tools to predict how these parameters interact under actual operating conditions. For instance, in a recent custom application for a high-pressure compressor, we adjusted the cross-sectional thickness from the standard 4.5 mm to 5.2 mm to accommodate a 20% higher pressure spike, extending the seal life by over 300% compared to the original design. This level of detail is why leading engineers trust our graphite die-formed rings for mission-critical systems.

To summarize, the critical dimensional parameters form the DNA of the ring. Any deviation from specified values compromises the sealing triad: contact stress, material integrity, and installation feasibility. Our factory maintains a comprehensive database of over 10,000 successful custom ring geometries, allowing us to recommend proven starting points for even the most complex applications.

---

2. Why Does the Relationship Between Ring Size and Groove Design Matter?

The graphite die-formed ring and its groove are partners in a precision ballet—neither can perform optimally without the other being perfectly choreographed. The groove design dictates not only the ring’s physical space but also its functional behavior under pressure and temperature. At Kaxite, we treat groove analysis as a mandatory step before finalizing ring dimensions.

Groove Depth vs. Ring Cross-Section: The most fundamental relationship is between groove depth (radial) and ring cross-sectional thickness. If the groove is too shallow, the ring experiences excessive compression, leading to high friction, increased wear, and potential extrusion. If too deep, insufficient compression fails to energize the seal, allowing leakage. The industry-standard formula we use is: Compression = (Cross-section thickness – Groove depth) / Cross-section thickness, with target compression rates varying by application: static seals 15–25%, dynamic reciprocating 10–15%, and rotary applications 5–10%.

Groove Width and Ring Axial Clearance: Axial movement (end play) must be controlled. In dynamic applications, the ring requires a small axial clearance to allow fluid film formation but not so much that it twists or rolls in the groove. Our factory typically sets axial clearance at 0.10–0.20 mm for reciprocating seals and 0.05–0.10 mm for rotary seals. For custom applications with high cycling frequencies, we sometimes incorporate backup rings or adjust the groove width to limit movement.

Groove Bottom Finish and Shape: The surface finish of the groove bottom directly affects the ring’s sealing efficiency. A rough groove bottom (Ra > 1.6 µm) can abrade the graphite material during installation and operation, while a polished surface (Ra 0.4 µm) promotes even compression. Additionally, the groove bottom should have a slight radius or be perfectly flat to prevent stress concentration. In our quality assurance protocols, we provide groove design recommendations including preferred radii and surface finish specifications tailored to the graphite grade being used.

Eccentricity and Concentricity Tolerances: Misalignment between the shaft and housing introduces uneven radial compression. For custom applications, we often recommend that the total indicated runout (TIR) of both shaft and housing be less than 50% of the ring’s designed compression range. When TIR exceeds this, our engineers might specify a slightly thicker cross-section or a ring with enhanced flexibility, such as graphite die-formed rings with a flexible core design.

One of our typical projects involved a custom pump application where the original design had a groove depth variation of 0.12 mm due to manufacturing tolerances. The standard graphite ring failed within 200 hours. By redesigning the ring with a 0.25 mm thicker cross-section and working with the client to tighten groove depth tolerance to ±0.02 mm, we achieved a seal life exceeding 8,000 hours. This case illustrates that ignoring the ring-groove relationship is a recipe for premature failure. Our factory provides complimentary groove design consultation to ensure every custom ring is matched to its hardware environment.

---

3. How Do You Calculate Optimal Compression Ratios for Custom Applications?

Compression ratio is arguably the single most critical factor in sizing graphite die-formed rings for custom applications. It determines the contact pressure that creates the seal, influences friction heat generation, and dictates how the ring accommodates hardware tolerances and operational dynamics. Through years of research and field data, our factory has developed a proprietary framework for compression ratio selection that goes beyond textbook formulas.

Step 1: Define the Application Type
The compression ratio target varies significantly based on whether the seal is static, reciprocating, oscillating, or rotary. We categorize applications into four groups:

• Static Seals (Flanges, Covers): Compression 18–25%. Higher compression ensures gas-tight sealing even with minor flange movement.
• Reciprocating Seals (Piston, Rod): Compression 12–18%. Balanced to maintain sealing while minimizing friction and wear.
• Rotary Seals (Shafts): Compression 5–12%. Lower compression reduces heat buildup and torque.
• Oscillatory/Swing Seals: Compression 10–15% with additional anti-extrusion measures.

Step 2: Account for System Pressure
Pressure is the primary driver of extrusion risk. For every 100 psi (7 bar) increase above baseline, we adjust the compression downward by 1–2% or incorporate backup rings. Our custom pressure calculation model considers:

• Maximum intermittent pressure spikes (often 1.5x system pressure)
• Pressure direction (internal vs. external)
• Presence of pressure reversals

For high-pressure applications exceeding 1,500 psi (103 bar), we frequently recommend graphite die-formed rings with embedded anti-extrusion elements or specialized groove geometries that allow higher compression without extrusion.

Step 3: Factor in Temperature and Media
Graphite’s thermal expansion coefficient is anisotropic, meaning it expands differently along the grain direction vs. across. In high-temperature applications (>400°C), the ring’s cross-section can expand by up to 1.5% of its original dimension. We calculate the “hot compression ratio” by simulating the ring’s dimensions at operating temperature using our proprietary material property database. For cryogenic applications (< -50°C), we use a lower initial compression to prevent embrittlement issues.

Step 4: Apply Safety Margins for Tolerances
No manufacturing process is perfect. We incorporate tolerance stack-up analysis to ensure the compression ratio remains within the acceptable range even under worst-case conditions. Our standard practice is to design for nominal compression plus a safety margin of ±2% to account for groove depth variations, ring cross-section tolerances, and thermal expansion differences.

To illustrate, consider a custom hydraulic actuator operating at 2,500 psi, 200°C, with reciprocating motion. Using our framework:

• Base compression (reciprocating): 14%
• Pressure adjustment (high pressure): -2%
• Temperature adjustment (200°C): +1% (to compensate for material expansion)
• Tolerance safety margin: ±1.5%
• Final target compression: 13% with tolerance window 11.5–14.5%

This level of precision is why Ningbo Kaxite Sealing Materials Co., Ltd. has become the preferred partner for custom sealing solutions in demanding industries. Our factory’s in-house testing lab validates every new compression design through accelerated life testing before full production.

---

4. What Are the Tolerance Guidelines and Quality Control Protocols in Our Factory?

Precision in custom graphite die-formed rings is not an aspiration—it is a non-negotiable requirement. At Ningbo Kaxite Sealing Materials Co., Ltd., we maintain some of the tightest tolerance capabilities in the industry, supported by a multi-stage quality control system that ensures every ring meets or exceeds your specifications. Understanding these tolerances and our quality protocols helps you make informed sizing decisions.

Standard Dimensional Tolerances We Offer:

Parameter	Precision Class (mm)	Industrial Class (mm)	Application Examples
Inner Diameter (ID)	±0.05	±0.15	Precision: aerospace, medical devices; Industrial: general hydraulics
Outer Diameter (OD)	±0.05	±0.15	Precision: high-pressure gas seals; Industrial: water pumps
Cross-Section Thickness	±0.03	±0.08	Precision: critical dynamic seals; Industrial: static flange seals
Radial Wall Uniformity	0.05 TIR	0.15 TIR	Ensures concentricity for rotating applications
Surface Finish (Ra)	≤0.8 μm	≤1.6 μm	Affects sealing and friction

For custom applications requiring tighter tolerances, our factory can achieve ID/OD tolerances as precise as ±0.02 mm on rings up to 200 mm diameter using advanced CNC die-forming and post-processing techniques. We achieve this through:

• Precision Molding Dies: All our dies are manufactured in-house with CNC machining centers, ensuring die cavity tolerances of ±0.01 mm. Dies are verified using coordinate measuring machines (CMM) before production.
• Controlled Compression Forming: Our proprietary forming process maintains consistent material density across the ring cross-section, preventing post-machining distortion. Each production batch undergoes density verification to ensure uniformity.
• 100% Dimensional Inspection: For custom orders, we implement 100% inspection of critical dimensions using laser micrometers and optical comparators. Statistical process control (SPC) charts track key parameters in real-time, allowing immediate adjustments if trends deviate.
• Material Traceability: Every graphite die-formed ring we produce is traceable to its raw material batch, including purity levels (typically 99.5% to 99.9% carbon content), grain orientation, and thermal treatment records. This is essential for industries like semiconductor manufacturing and nuclear power.

Our quality control system is certified to ISO 9001:2015, with specific procedures for custom sealing components. Before shipping, each custom order undergoes a final inspection that includes dimensional verification, visual inspection for surface defects (cracks, inclusions, delamination), and packaging that prevents contamination or damage. For critical applications, we can provide full inspection reports, including CMM data and material certificates, ensuring you have complete confidence in your components. When you choose our graphite die-formed rings, you are not just buying a part; you are investing in a rigorously controlled manufacturing process designed for repeatable, reliable performance.

---

5. How to Account for Thermal Expansion and Chemical Compatibility in Sizing?

The operating environment imposes physical and chemical demands that can alter the effective size and integrity of graphite die-formed rings. Two of the most significant factors are thermal expansion and chemical interaction with the media. Overlooking these can cause a perfectly sized ring at ambient conditions to fail spectacularly under service conditions. At Ningbo Kaxite Sealing Materials Co., Ltd., we integrate environmental analysis into the sizing process from the outset.

Thermal Expansion Considerations:
Graphite exhibits a low but anisotropic coefficient of thermal expansion (CTE). In the plane of the ring (circumferential direction), the CTE is typically 2.0–4.5 × 10⁻⁶ /°C, while through the thickness (radial direction), it can be 8–15 × 10⁻⁶ /°C depending on the grain orientation. This means as temperature rises:

• The ring’s ID and OD expand at different rates, potentially altering radial interference.
• Cross-sectional thickness increases more significantly, raising compression ratios.
• For applications with wide temperature swings (e.g., -50°C to +600°C), the ring must be sized so that at maximum temperature the compression does not exceed the material’s yield strength, and at minimum temperature the compression remains sufficient to seal.

Our engineering approach involves thermal modeling using specific CTE data for the graphite grade selected. We then calculate the ring’s dimensions at both the minimum and maximum operating temperatures to ensure the sealing parameters stay within safe limits. In one high-temperature furnace application, we increased the initial cross-section clearance by 0.2 mm to account for a 450°C temperature rise, preventing the ring from seizing in the groove during heat-up.

Chemical Compatibility and Swelling:
While graphite is chemically inert to most acids, bases, and organic solvents, certain aggressive media like strong oxidizing agents (concentrated nitric acid, chlorine gas) or molten metals can attack the graphite matrix, potentially causing dimensional changes or material loss. Additionally, some fluids can penetrate the graphite porosity, leading to a phenomenon called “fluid-induced swelling,” which can increase ring dimensions by 0.5–2.0% depending on the media and time of exposure.

To mitigate these risks, we:

• Select graphite grades with optimized porosity (typically 10–15% for general sealing, down to 5% for high-density applications).
• Apply surface impregnations (e.g., PTFE, resin, or carbon) to block fluid penetration when necessary.
• Perform compatibility testing on custom materials in our lab when the application involves unusual chemicals.

For a chemical reactor application handling a mixture of toluene and hydrogen chloride, we recommended a graphite grade with a phenolic resin impregnation, which reduced dimensional swelling by over 70% compared to non-impregnated material, maintaining the precise sealing geometry required.

Installation Temperature Effects:
Even installation conditions matter. Graphite die-formed rings become slightly more rigid at low temperatures and more pliable at elevated temperatures. For field installations in cold climates, we sometimes recommend slight oversizing to allow easier assembly, or we provide detailed heating instructions to prevent cracking during installation. Our factory’s technical support includes installation guidelines tailored to your specific ring dimensions and application environment.

---

Conclusion

Selecting the right size for graphite die-formed rings in custom applications is a multi-faceted engineering process that demands attention to dimensional parameters, groove relationships, compression ratios, tolerances, and environmental influences. At Kaxite, we have refined this process over two decades, helping clients avoid costly failures and optimize their sealing systems. Our factory combines advanced manufacturing capabilities with deep material science expertise to deliver custom rings that perform reliably in the most demanding conditions.

Whether you are designing a new system or troubleshooting an existing sealing challenge, our team is ready to assist. We provide complimentary sizing consultations, including groove analysis and material recommendations, to ensure your next project benefits from the highest level of sealing precision. Contact our engineering department today to discuss your custom application requirements. Let us show you why industry leaders choose our graphite die-formed rings for performance that sets new benchmarks.

---
