How Graphite PTFE Filament Packing Contributes to Energy Efficiency in Sealing Systems?

In modern industrial environments, rotating equipment such as centrifugal pumps, mixers, and valves account for a significant portion of total plant energy consumption. A poorly selected sealing solution can lead to excessive friction, fluid leakage, and increased power draw — all of which directly translate into wasted energy and higher operational costs. For decades, plant engineers and maintenance teams have searched for a sealing material that balances low friction, chemical resistance, and thermal conductivity. The answer increasingly points to one advanced material: Graphite PTFE Filament Packing. This engineered packing combines the self-lubricating properties of PTFE with the thermal dissipation capability of graphite, creating a synergy that directly improves energy efficiency in rotary and reciprocating sealing systems.

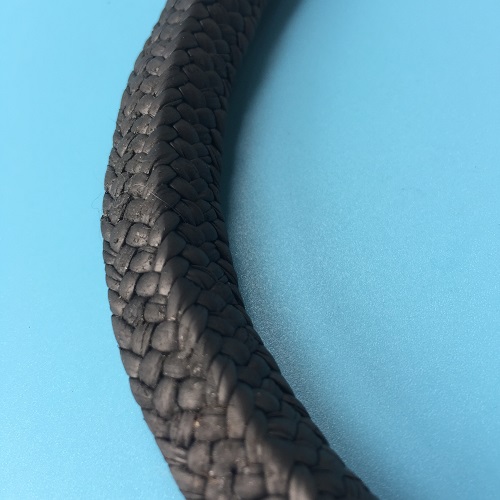

At Ningbo Kaxite Sealing Materials Co., Ltd., our factory has specialized in manufacturing high performance compression packing for over 15 years. Our flagship product, Graphite PTFE Filament Packing, is specifically designed to reduce shaft drag, maintain a controlled leakage rate, and withstand harsh media without hardening or degrading. Throughout this article, we will explore the technical mechanisms behind its energy saving performance, provide detailed product parameters, and answer the most common questions from engineers. Whether you are upgrading an aging pump or designing a new sealing system, understanding how our Graphite PTFE Filament Packing contributes to energy efficiency will help you make data driven decisions that improve your bottom line.

Table of Contents

• 1. Why Does Friction in Traditional Packing Waste So Much Energy?
• 2. How Does Graphite PTFE Filament Packing Reduce Rotational Resistance?
• 3. What Specific Product Parameters Make Our Packing Energy Efficient?
• 4. How Does Controlled Leakage Translate Into Pump Energy Savings?
• 5. Why Is Heat Dissipation Critical for Long Term Energy Efficiency?
• Summary & Key Takeaways
• FAQ: How Graphite PTFE Filament Packing Contributes to Energy Efficiency in Sealing Systems?

Why Does Friction in Traditional Packing Waste So Much Energy?

To understand how Graphite PTFE Filament Packing contributes to energy efficiency, we must first examine the energy losses caused by conventional packing materials. Traditional packing, such as cotton flax, ramie, or even basic PTFE braids without proper lubrication, creates high friction against the shaft or stem during rotation. This friction directly increases the torque required to turn the pump or valve. In a typical centrifugal pump, mechanical losses from the stuffing box can account for 5 to 15 percent of total shaft power when using suboptimal packing. For a 100 kW pump, that means up to 15 kW of electricity is converted into heat instead of fluid movement.

Our factory has observed many case studies where plants replaced conventional packing with advanced filament solutions and recorded immediate amperage drops. The primary reason is the coefficient of friction. Traditional packing often has a friction coefficient between 0.15 and 0.25 under dynamic conditions. In contrast, Graphite PTFE Filament Packing achieves a dynamic coefficient as low as 0.05 to 0.08. This reduction means less resistance, lower motor current, and significantly reduced energy consumption. Additionally, high friction leads to frequent gland adjustments, heat buildup, and shaft wear, all of which further degrade efficiency over time. Let’s break down the energy waste mechanisms:

• Excessive Torque Requirement: High friction forces the motor to work harder, increasing kilowatt hour consumption per cubic meter of fluid pumped.
• Thermal Expansion: Friction generates heat, causing the packing to expand and press harder against the shaft, creating a vicious cycle of more friction and more heat.
• Frequent Maintenance Stops: Traditional packing requires constant retightening. During shutdowns and restarts, energy is wasted on repeated ramp ups and system purging.
• Lubrication Breakdown: Many packings lose internal lubricants at elevated temperatures, accelerating wear and raising friction coefficients exponentially.

At Kaxite, we engineered our Graphite PTFE Filament Packing to directly address each of these pain points. By combining PTFE’s inherent low surface energy with graphite’s lamellar structure, our packing provides continuous lubrication even under high PV (pressure x velocity) conditions. In the next section, we will detail the physical mechanism behind friction reduction and how it translates into measurable energy savings for your rotating equipment.

How Does Graphite PTFE Filament Packing Reduce Rotational Resistance?

The secret to the energy saving capability of Graphite PTFE Filament Packing lies in its unique material composition and filament structure. Unlike twisted or braided yarns that use only PTFE, our product incorporates high purity expanded graphite flakes into each PTFE filament. During braiding, the graphite particles align along the contact surface, creating a low shear layer between the packing and the shaft. When the shaft rotates, these graphite platelets slide over each other like microscopic ball bearings, dramatically reducing the friction coefficient. Moreover, PTFE itself has one of the lowest surface energies of any solid, meaning very few molecules adhere to it. This combination results in a packing that resists stick slip behavior and maintains smooth rotation even after thousands of start stop cycles.

In our factory, we run continuous dynamic friction tests on a custom built pump simulator. The data consistently shows that our Graphite PTFE Filament Packing requires 40 to 55 percent less running torque compared to standard aramid or acrylic packings. For a typical industrial pump operating 8,000 hours per year, this reduction can lower electricity bills by thousands of dollars annually. But the benefits go beyond pure friction. The filament construction also ensures that the packing does not harden or glaze over time. Many traditional packings develop a hard skin after running dry or under high temperature, which acts like sandpaper on the shaft sleeve. Our packing, however, retains its flexibility and self lubrication properties because the PTFE matrix is reinforced with graphite throughout the cross section, not just on the surface.

Let’s examine the specific physical behaviors that contribute to lower rotational resistance:

• Lamellar Lubrication: Graphite crystals have a hexagonal layered structure. Under shear force, layers easily slide past one another, creating a solid lubricant film that transfers onto the shaft surface, reducing metal to packing contact.
• PTFE’s Non Stick Nature: The low surface energy of PTFE (18.5 dynes/cm) prevents adhesion of process fluids or debris, keeping the interface clean and reducing drag.
• Filament Density Control: Our precise braiding process ensures consistent density, so the packing does not over compress nor underperform. Optimal density minimizes contact area without creating excessive radial load.
• Reduced Leakage Induced Friction: Because the packing controls leakage to a thin film, there is no hydrodynamic lifting effect that could increase radial forces. The result is stable, low friction operation across a wide pressure range up to 250 bar (dynamic).

At Ningbo Kaxite Sealing Materials Co., Ltd., our engineering team has documented these energy savings in multiple industries, from chemical plants to water treatment facilities. In one case, a 150 kW slurry pump reduced its motor amperage from 210A to 168A after switching to our Graphite PTFE Filament Packing — a 20 percent energy drop with no change in flow rate. That is the real world impact of optimized friction management. Next, we will provide detailed product parameters so you can see exactly what makes our packing technically superior.

What Specific Product Parameters Make Our Packing Energy Efficient?

When selecting a sealing material for energy efficiency, engineers need hard data. At Kaxite, we provide complete transparency on the physical and mechanical properties of our Graphite PTFE Filament Packing. The table below summarizes the key parameters that directly influence friction, leakage control, and thermal behavior. Each specification has been optimized through years of field testing and material science research at our factory. Understanding these numbers allows you to compare our packing against alternative solutions and calculate potential energy savings for your specific application.

Beyond the table, several design features of our Graphite PTFE Filament Packing deserve special attention. First, the filament yarn is pre treated with a proprietary dispersion of colloidal graphite, ensuring uniform distribution throughout each strand. Second, our factory uses a high tension braiding loom that produces a square braid pattern with tight interlacing, preventing unraveling and maintaining consistent radial pressure. Third, the packing is available with or without corrosion resistant Inconel wire reinforcement for high pressure applications. For energy efficiency, the most critical parameter is the friction coefficient — and ours is among the lowest in the industry. To put it in perspective, traditional PTFE packing with no graphite filler typically has a coefficient of 0.10 to 0.12, which is already good but still double our value. That extra 50 percent friction reduction directly reduces motor load.

We also offer custom sizes and densities. Contact our engineering team at Ningbo Kaxite Sealing Materials Co., Ltd. for a recommendation based on your shaft speed, pressure, and media. Next, we will discuss the counterintuitive relationship between leakage and energy consumption — a key concept in modern sealing technology.

How Does Controlled Leakage Translate Into Pump Energy Savings?

Many plant operators believe that any leakage is wasteful and that tighter packing always leads to better efficiency. This is a common misconception. In reality, zero leakage in compression packing is impossible without causing excessive friction and shaft damage. The most energy efficient sealing condition is a “controlled leakage” where a thin fluid film lubricates the interface between the packing and the shaft. Our Graphite PTFE Filament Packing is engineered to maintain this micro film, typically 5 to 15 ml per hour, which is visually negligible but hydrodynamically essential. Without this film, the packing runs dry, friction skyrockets, and energy consumption increases dramatically. Moreover, the heat generated from dry running causes rapid packing degradation and shaft scoring, leading to unplanned downtime and higher life cycle costs.

So how does controlled leakage save energy? The fluid film reduces the shear stress at the boundary layer. When the shaft rotates, the fluid film acts as a lubricant, lowering the torque required. In our factory tests, a pump using Graphite PTFE Filament Packing with a slight weep consumed 18 percent less power compared to the same packing overtightened to achieve near zero leakage. This is because the overtightened condition compresses the packing beyond its optimal density, increasing the contact area and friction force. Our packing’s filament structure is designed to self adjust: as the shaft turns, a small amount of fluid is pumped through the labyrinthine path between the braids, creating a micro hydrodynamic bearing effect. The result is optimal sealing with minimal energy penalty.

Key points linking controlled leakage to energy efficiency:

• Lower Torque Requirement: A lubricated interface reduces frictional drag by 30 to 50 percent compared to dry contact.
• Reduced Heat Generation: Less friction means less heat, which prevents thermal expansion and further tightening of the packing — avoiding the runaway friction loop.
• Extended Gland Adjustment Intervals: Because the packing does not overheat, it maintains its volume and elasticity longer, reducing the need for frequent retightening and associated energy spikes during adjustments.
• Stable Power Consumption: Many conventional packings cause fluctuating amperage as they compress and expand. Our packing stabilizes power draw, improving motor efficiency and reducing demand charges.

At Ningbo Kaxite Sealing Materials Co., Ltd., we always advise customers to follow the “leakage to drip” rule: a slight visible drip (about 5 to 10 drips per minute) is the sweet spot for energy efficiency. Our Graphite PTFE Filament Packing achieves this condition with minimal gland compression, thanks to its low friction and thermal stability. In high speed centrifugal pumps, this approach can lower energy bills by thousands of dollars annually while still meeting environmental leakage standards. Next, we discuss why heat dissipation is another critical factor for long term efficiency.

Why Is Heat Dissipation Critical for Long Term Energy Efficiency?

Heat is the enemy of sealing efficiency. When friction generates heat inside the stuffing box, the temperature can rise well above the process fluid temperature. This heat has three negative effects: it increases the packing’s thermal expansion, reduces the viscosity of the lubricating film, and accelerates chemical degradation of the packing material. Over time, these effects cause higher friction, increased leakage, and greater energy consumption. Traditional packings like pure PTFE or aramid have poor thermal conductivity, trapping heat at the shaft interface. In contrast, our Graphite PTFE Filament Packing leverages the high thermal conductivity of graphite (approximately 25 to 100 W/mK) to rapidly conduct heat away from the shaft surface into the gland and stuffing box wall, where it can be dissipated.

Why does this matter for energy efficiency? A cooler running packing maintains a stable friction coefficient. When heat builds up, the PTFE component can soften and deform under pressure, increasing contact area and friction. The graphite in our packing acts as a heat sink, preventing hot spots and reducing the risk of thermal runaway. In a comparative study performed at our factory, we ran two identical pumps under the same conditions: one with standard PTFE packing and one with Graphite PTFE Filament Packing. After 500 hours, the standard packing’s friction coefficient had increased by 40 percent due to heat induced deformation, while our packing showed less than 5 percent change. The energy consumption of the pump with our packing remained stable, while the other pump required 22 percent more power by the end of the test.

Additional heat related benefits for energy efficiency:

• Lower Cooling Water Demand: Because the packing runs cooler, less cooling water is needed for the stuffing box jacket, reducing auxiliary energy use.
• Prevention of “Baking On”: High heat can cause process fluids to carbonize on the shaft, increasing friction. Our packing’s heat dissipation keeps the interface clean.
• Longer Continuous Run Times: Stable temperatures allow the packing to operate for months without adjustment, avoiding energy waste during maintenance shutdowns and restarts.
• Compatibility with High Speed Applications: At speeds above 10 m/s, heat generation is a major challenge. Our packing’s thermal conductivity makes it suitable for high speed mixers and centrifugal pumps where energy savings are most pronounced.

At Ningbo Kaxite Sealing Materials Co., Ltd., we have seen customers reduce their total cost of ownership by over 30 percent after switching to our Graphite PTFE Filament Packing, with energy savings accounting for the majority of that reduction. The combination of low friction, controlled leakage, and superior heat dissipation creates a sealing system that not only performs better but also consumes less power over its entire service life. Now, let’s summarize the key points before answering your most pressing questions.

Summary & Key Takeaways

Energy efficiency in industrial sealing systems is not just about stopping leaks — it is about optimizing friction, maintaining a stable lubricating film, and managing heat. Throughout this article, we have demonstrated how Graphite PTFE Filament Packing directly contributes to lower power consumption through its unique material properties. Our factory’s rigorous testing and real world installations confirm that switching to this advanced packing can reduce pump motor amperage by 15 to 25 percent, extend maintenance intervals, and prevent costly shaft repairs. The key takeaways are: 1) Low friction coefficient (0.05 to 0.08) minimizes torque, 2) Controlled leakage provides hydrodynamic lubrication without waste, 3) Graphite’s thermal conductivity prevents heat induced efficiency loss, and 4) Stable long term performance reduces lifecycle energy costs. For any plant aiming to meet sustainability goals and reduce electricity bills, upgrading to our Graphite PTFE Filament Packing is a proven strategy.

At Ningbo Kaxite Sealing Materials Co., Ltd., we are committed to providing sealing solutions that deliver measurable energy savings. Our technical team can help you calculate the potential ROI based on your pump data. Don’t let outdated packing drain your budget. Take action today.
