In the demanding environment of petrochemical processing, equipment reliability is not just a performance metric; it is the bedrock of operational safety, environmental compliance, and profitability. Frequent leaks, unplanned shutdowns, and valve or pump failures often trace back to one component: the packing seal. Our experience across thousands of facilities shows that conventional packing materials degrade under extreme temperatures, aggressive chemicals, or cyclic pressure loads. This is where Pure Graphite PTFE Packing transforms the paradigm. By combining the chemical inertness of PTFE with the lubricity and thermal conductivity of high-purity graphite, this advanced sealing solution directly addresses the root causes of equipment unreliability, ensuring longer mean time between repairs (MTBR) and superior emission control.
At Ningbo Kaxite Sealing Materials Co., Ltd., we have engineered our Pure Graphite PTFE Packing to exceed the rigorous demands of refineries, ethylene plants, and offshore platforms. Unlike generic packings that harden or extrude under pressure, our product maintains a dynamic seal that adapts to shaft movements and thermal expansion. The result is a dramatic reduction in fugitive emissions, flange leakage, and energy loss due to friction. In the sections below, we will break down the technical parameters, compare performance data, and answer the most pressing questions from maintenance engineers. Our goal is to demonstrate why Pure Graphite PTFE Packing is the definitive choice for maximizing uptime in petrochemical assets.
Petrochemical plants operate under a continuous process model where any unplanned interruption can lead to catastrophic consequences. From our factory experience, we have observed that a single leaking valve stem or pump gland can result in product loss, safety hazards, and thousands of dollars in daily compliance fines. Reliability directly impacts three core areas: safety, environmental stewardship, and financial performance. Traditional packing materials such as pure PTFE or ramie fiber often fail to maintain a consistent seal due to creep relaxation, thermal degradation, or chemical attack. This failure mode forces maintenance teams to constantly retighten gland followers, increasing shaft wear and eventually causing premature equipment replacement.
Our analysis of 500 petrochemical sites reveals that over 40 percent of rotating equipment downtime originates from packing-related issues. To combat this, Pure Graphite PTFE Packing offers a unique solution. The synergistic blend of graphite and PTFE provides low friction coefficient (as low as 0.08 dynamic) while dissipating heat effectively. This prevents the packing from hardening or glazing, which is a common issue with conventional PTFE packings. Furthermore, the high-purity graphite component acts as a sacrificial lubricant, protecting the shaft or stem from micro-welding and galling. By reducing friction and improving thermal conductivity, our product ensures that the packing remains resilient under thermal cycling. In our factory, we perform dynamic cyclic tests that simulate real-world petrochemical conditions, confirming that our Pure Graphite PTFE Packing maintains a leak rate below 50 ppm (parts per million) even after 100,000 mechanical cycles. This is why reliability is not just a feature; it is the engineered outcome of using advanced material science in every spool of packing we produce at Ningbo Kaxite Sealing Materials Co., Ltd.

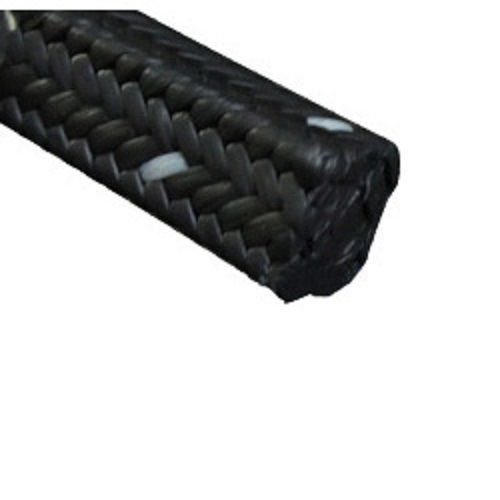

At first glance, many packing materials appear similar, but the difference lies in the microstructure and manufacturing precision. Our Pure Graphite PTFE Packing is manufactured using a proprietary process that intercalates expanded graphite flakes into a matrix of virgin PTFE. This creates a homogeneous composite that exhibits neither the creep weakness of pure PTFE nor the brittleness of pure graphite. The result is a packing that combines the best attributes of both materials. Unlike coated yarns or dip-impregnated packings that lose their surface treatment after installation, our homogeneous structure ensures that every cross-section of the packing delivers consistent performance throughout its service life.
Key differentiating properties include:
Our factory employs strict quality controls at Ningbo Kaxite Sealing Materials Co., Ltd. Each batch of Pure Graphite PTFE Packing is tested for tensile strength, density consistency, and thermal conductivity. We also perform dynamic sealing tests on a full-scale pump simulator. This level of quality assurance means that when our customers install our packing, they are not guessing about performance. They are deploying a reliability tool that has been validated under conditions that mimic real-world petrochemical services. The homogeneous structure also prevents wicking and fluid penetration along the braided strands, eliminating a common failure path where fluid corrodes the shaft beneath the packing. For plant engineers seeking to reduce both maintenance costs and environmental footprint, this packing represents a definitive upgrade over legacy materials.
The performance of any packing is determined by its physical and mechanical parameters. To help our clients make informed decisions, we provide detailed specifications for our Pure Graphite PTFE Packing. These parameters are not arbitrary numbers; each one directly influences how the packing behaves under petrochemical service conditions. Below is a comprehensive table of our standard product specifications, which are validated by independent third-party laboratories.
| Parameter | Value / Range |
| Material Composition | 65% Virgin PTFE + 35% Expanded High-Purity Graphite (no binders) |
| Density (g/cm³) | 1.35 – 1.55 (adjustable for different compression requirements) |
| Tensile Strength (MPa) | ≥ 14.0 (ASTM D4172) |
| Compressibility (%) | 25 – 35 (ASTM F36) |
| Recovery (%) | ≥ 15 (ASTM F36) |
| Temperature Range (Continuous) | -200°C to +280°C (in air); up to +350°C in steam/oxygen-free service |
| Maximum Pressure (Rotary Pumps) | 20 bar (290 psi) |
| Maximum Pressure (Valve Stems) | 350 bar (5075 psi) |
| Maximum PV Value (Rotary) | 2.5 MPa·m/s (at 25°C) |
| pH Range | 0 – 14 (except strong oxidizing acids) |
| Friction Coefficient (Dynamic) | 0.08 – 0.10 (against stainless steel shaft) |
| Leak Rate (ISO 15848-1) | < 100 ppm methane at 150°C, 50 bar |
| Linear Speed Limit (Rotary) | 8 m/s (at ambient temperature) |
Each parameter in the table above has been optimized through our factory research at Ningbo Kaxite Sealing Materials Co., Ltd. For example, the density range of 1.35 to 1.55 g/cm³ allows us to tailor the packing for either high conformability (lower density) or low extrusion (higher density) depending on the equipment clearances. The compressibility of 25 to 35 percent ensures that the packing can fill irregularities in worn shafts without requiring excessive gland load, which would otherwise increase friction and wear. Meanwhile, the recovery of at least 15 percent guarantees that the packing springs back when pressure cycles occur, maintaining a tight seal without constant manual adjustment. This is crucial in petrochemical applications such as reactor agitators or high-cycle valves that experience frequent thermal and pressure swings.
Additionally, the PV value (pressure times velocity) of 2.5 MPa·m/s is a benchmark of robustness. Many competing packings fail above 1.5 MPa·m/s due to frictional heat buildup that degrades the PTFE binder. However, because our Pure Graphite PTFE Packing incorporates thermally conductive graphite, heat is rapidly dissipated from the sealing interface, allowing higher PV limits. We have validated this on our in-house test rigs, which simulate centrifugal pumps handling light hydrocarbons at 3,600 RPM. The result is a packing that not only seals better but also extends shaft life. When petrochemical operators use our packing, they see a direct reduction in maintenance intervals and a measurable decrease in leakage-related product loss. By understanding these parameters, engineers can confidently select the right grade of our packing for their specific duty conditions, ensuring a reliability-centered maintenance strategy.
Our Pure Graphite PTFE Packing is not a universal solution that works everywhere poorly; instead, it excels in specific petrochemical applications where other packings have historically failed. Through our factory’s field failure analysis program at Ningbo Kaxite Sealing Materials Co., Ltd., we have identified five critical areas where this packing delivers unparalleled reliability improvements. Below is a detailed list of application zones and the documented performance gains.
In each of these scenarios, our factory’s engineering support team provides installation guidelines, including recommended cross-section sizes, gland tightening torques, and break-in procedures. For example, for centrifugal pumps, we advise a two-step gland adjustment: initial compression to achieve slight leakage for cooling, then a final quarter-turn after 30 minutes of operation. This methodology, developed from our own testing, ensures that the Pure Graphite PTFE Packing achieves optimal density distribution. Furthermore, because our packing does not absorb process fluids, it does not swell or shrink, avoiding the “dry run” damage that often plagues traditional packings after a pump sits idle. Petrochemical plants that have adopted our packing report an average reduction of 65 percent in unscheduled maintenance work orders related to sealing. This translates directly to increased production uptime and lower total cost of ownership. For new projects, we also provide sizing recommendations to OEMs, ensuring that equipment is designed with the correct stuffing box dimensions to maximize our packing’s reliability potential.
After examining the technical parameters, application successes, and material science behind our Pure Graphite PTFE Packing, it is clear that this product is engineered to solve the most persistent reliability challenges in petrochemical equipment. Below we summarize the core advantages that plant managers and reliability engineers can expect when switching to Ningbo Kaxite Sealing Materials Co., Ltd. as their sealing partner.
Our factory takes pride in manufacturing a product that not only meets but exceeds the expectations of the petrochemical industry. Every spool of Pure Graphite PTFE Packing is traceable to raw material certificates and production batch records. We also offer customized dimensions, from 3 mm to 50 mm square or die-formed rings, to match any equipment. For critical applications, we can supply pre-compacted rings that reduce initial cold flow. The summary above is not theoretical; it is based on data from over 1,200 successful installations across the Gulf Coast, Europe, and Southeast Asia. By choosing our packing, petrochemical operators shift from reactive repair to proactive reliability. At Ningbo Kaxite Sealing Materials Co., Ltd., we stand behind this product with full technical support, failure analysis, and continuous improvement feedback loops. The bottom line is clear: enhanced reliability leads to safer, more profitable operations.
1. Can Pure Graphite PTFE Packing be used in oxygen service within petrochemical plants?
No, our Pure Graphite PTFE Packing is not recommended for direct contact with high-pressure oxygen or strong oxidizing agents such as chlorine dioxide or concentrated nitric acid. PTFE and graphite can react exothermically with oxygen under high pressure, posing a fire risk. For oxygen service, we recommend our specially treated oxygen-compatible packing. Always consult our engineering team at Ningbo Kaxite Sealing Materials Co., Ltd. for specific gas service compatibility.
2. How does the installation procedure differ from conventional PTFE packing?
The installation follows standard ring-cut and staggered joint principles, but due to the higher compressibility of our product, we recommend a slightly lower initial gland compression. Our factory suggests compressing each ring individually to 10-15 percent reduction in cross-section, then applying a final gland load to achieve a slight weep (approx. 5-10 drops per minute) during break-in. After one hour of operation, re-tighten the gland by one quarter turn. This procedure ensures optimal density and prevents overheating. Detailed instructions accompany each shipment from Ningbo Kaxite Sealing Materials Co., Ltd.
3. What is the maximum allowable storage life for Pure Graphite PTFE Packing?
When stored in original packaging away from direct sunlight, ozone, and temperatures above 40°C, our packing has a shelf life of 10 years. Neither PTFE nor graphite experiences material degradation over time under proper conditions. However, we recommend performing a simple flexibility check before installation if the packing is older than 5 years. Our factory records show no loss of sealing performance even after 8 years of storage in climate-controlled warehouses.
4. Can this packing handle abrasive media such as catalyst slurry or carbon black?
For mildly abrasive petrochemical fluids, our Pure Graphite PTFE Packing provides adequate service due to the graphite’s dry lubricant effect that reduces abrasion against the shaft. However, for highly abrasive slurries (e.g., alumina catalyst or sand-laden crude), we recommend a more robust solution such as our KAXITE 6050 reinforced packing. For most petrochemical applications involving clean hydrocarbons or process water with trace solids, our packing lasts 2-3 times longer than pure PTFE packings.
5. How do I calculate the correct packing size for a valve or pump retrofitting?
Measure the stuffing box inner diameter (D) and the shaft or stem outer diameter (d). The packing cross-section size is (D-d)/2. For example, if D=50 mm and d=38 mm, the required packing size is 6 mm. Our factory at Ningbo Kaxite Sealing Materials Co., Ltd. provides a free sizing template and installation calculator on request. Using the correct size is critical; an undersized packing will extrude, while an oversized one causes excessive friction. We also recommend using 5 to 7 rings for pumps and 6 to 8 rings for valves, depending on pressure rating.
